3M Self Adhesive Digital Printing Rubber Keypad Membrane Switch

3M Self Adhesive Digital Printing Rubber Keypad Membrane Switch

A rubber keypad membrane switch is a type of user interface commonly used in various electronic devices. It typically consists of several layers:

1. Top Layer: Made of flexible rubber or silicone, this is the visible surface where the user interacts. It often features printed symbols or labels.

2. Spacer Layer: This layer prevents accidental activation of the switches when they are not being pressed. It contains openings that align with the buttons on the top layer.

3. Circuit Layer: This layer includes conductive traces that connect the switches to the device's electronics. When a button is pressed, the top layer makes contact with this layer, completing the circuit.

Advantages

• Durability: Rubber keypads are resistant to dust, moisture, and chemicals, making them suitable for harsh environments.
• Tactile Feedback: They provide a satisfying tactile response, allowing users to feel when a button is pressed.
• Customization: These keypads can be easily customized in terms of layout, color, and design.

Applications

Rubber keypad membrane switches are commonly found in:

• Household appliances (microwaves, washing machines)
• Medical devices
• Industrial equipment
• Automotive controls
• Consumer electronics (remote controls, gaming devices)

Labels spec :

Material

• Common materials include vinyl, polyester, polyimide (Kapton), and polyethylene terephthalate (PET) films.
• The material needs to be durable, chemical/solvent resistant, and able to withstand temperature extremes.

Adhesive

• Pressure-sensitive adhesives like acrylic or rubber-based are common.
• The adhesive must have strong bonding strength to adhere securely to various surfaces.
• It should also resist peeling, lifting, and degradation over time.

Thickness

• Typical sticker thicknesses range from 2-10 mils (0.002" to 0.010").
• Thicker stickers are more durable but may impact conformability to uneven surfaces.

Size & Shape

• Industrial stickers come in a wide range of standard and custom sizes.
• Common shapes include rectangles, squares, circles, ovals, and die-cut custom shapes.
• Size is selected based on the specific application needs.

About Taida.pdf

Labels appications:

Other photo show :

adhesive graphic overlay

adhesive graphic panel overlay

self adhesive graphic overlay

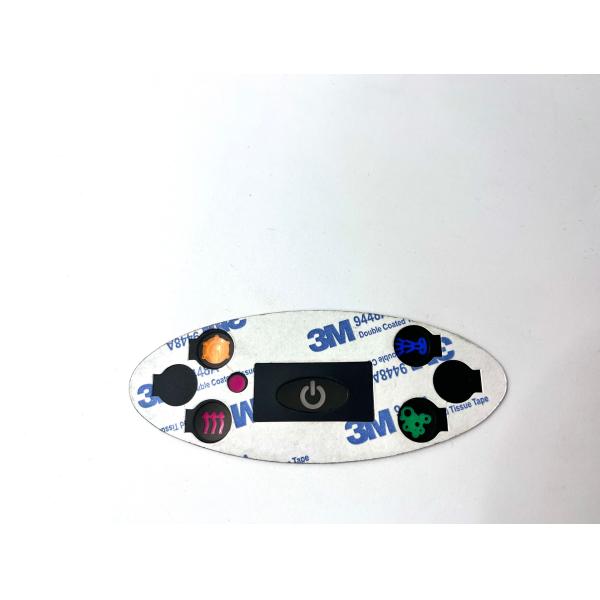

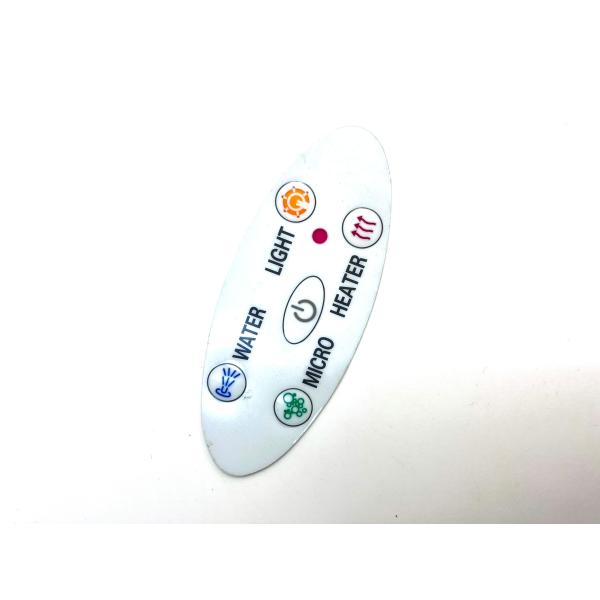

3M Self Adhesive Digital Printing Rubber Keypad Membrane Switch Images
